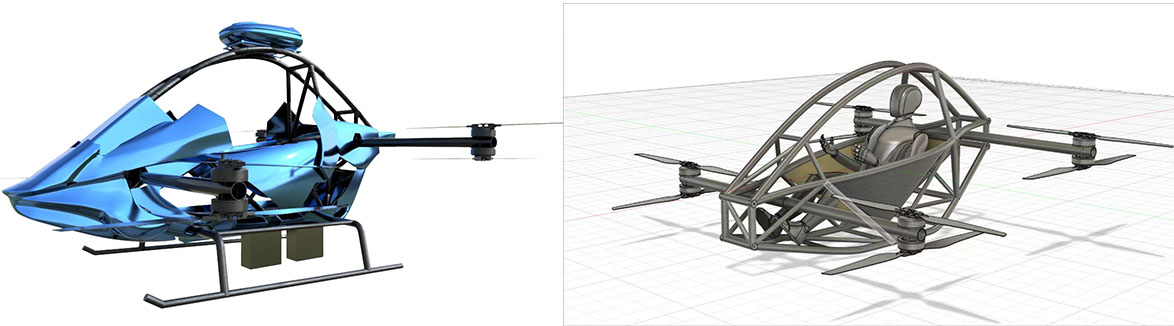

This is a safe, reliable, easy-to-operate, efficient and environmentally friendly eVTOL aircraft. It is a single-seat electric vertical take-off and landing flight platform designed to meet the needs of personal short-distance air travel.
◆ High-strength aluminum alloy is used as the main structural material, which has excellent strength-to-weight ratio and fatigue resistance;
◆ The aircraft structure design adopts a modular concept. The main fuselage, wings and power units can be separated, facilitating transportation, storage and maintenance;
◆ Payload refers to the additional weight that the aircraft can carry, including the pilot, cargo or equipment. The 85kg payload design fully takes into account the average weight of adults and a small amount of personal items, meeting the needs of daily commuting and leisure flights;
|
Item |
Parameter |
|
Maximum take-off weight |
200 kg |
|
Maximum flight speed |
80 km/h |
|
Cruising speed |
80 km/h |
|
Maximum ceiling |
1000 m |
|
Maximum takeoff altitude |
1000 m |
|
Maximum load weight |
85 kg |
|
Control radius |
30 km |
|
Endurance |
≥15 min |
|
Positioning precision |
≤ 1 m (Beidou positioning accuracy /GPS) |
|
Response time |
≤ 15 min (deployment time/withdrawal time) |
|
Temperature |
-10℃~+55℃ (operating temperature) -20℃~+60℃ (storage temperature) |
|
Humidity |
≤ 75% |
|
Operational environment |
Sunny/lightly snowy/little foggy |
